Various reinforced car steering linkage Parts Supply

Short Description:

A steering linkage is the part of an automotive steering system that connects to the front wheels.

The steering linkage which connects the steering gearbox to the front wheels consists of a number of rods.These rods are connected with a socket arrangement similar to a ball joint, called a tie rod end, allowing the linkage to move back and forth freely so that the steering effort will not interfere with the vehicles up-and-down motion as the wheel moves over roads.

Send email to us

Product Detail

Product Tags

G&W provides more than 2000 SKU steering linkage parts to satisfy the customers' one-stop purchasing demand.The steering parts include:

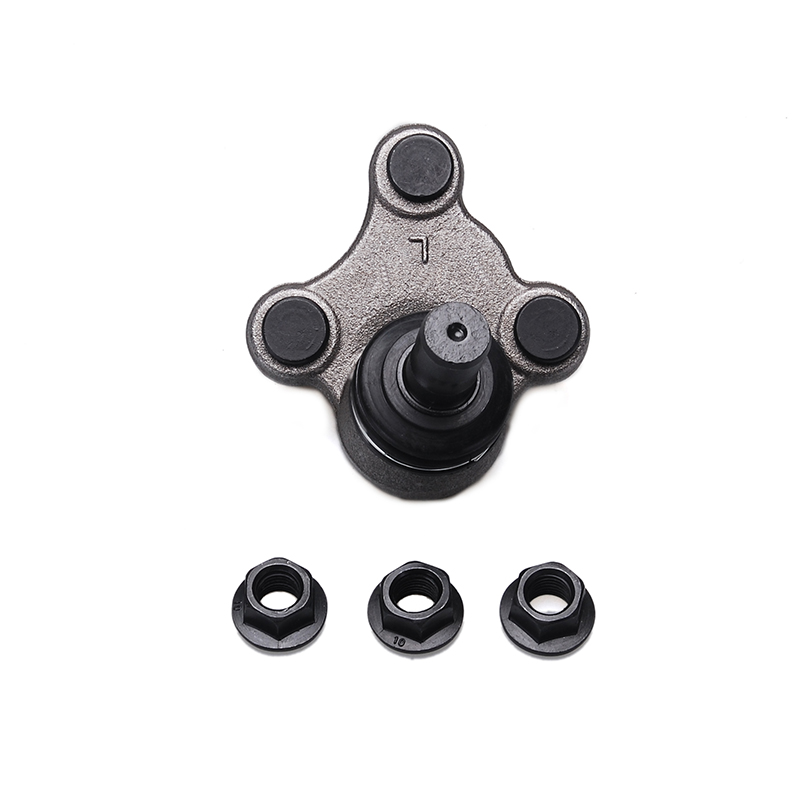

·Ball joints

·Tie rods

·Tie Rod Ends

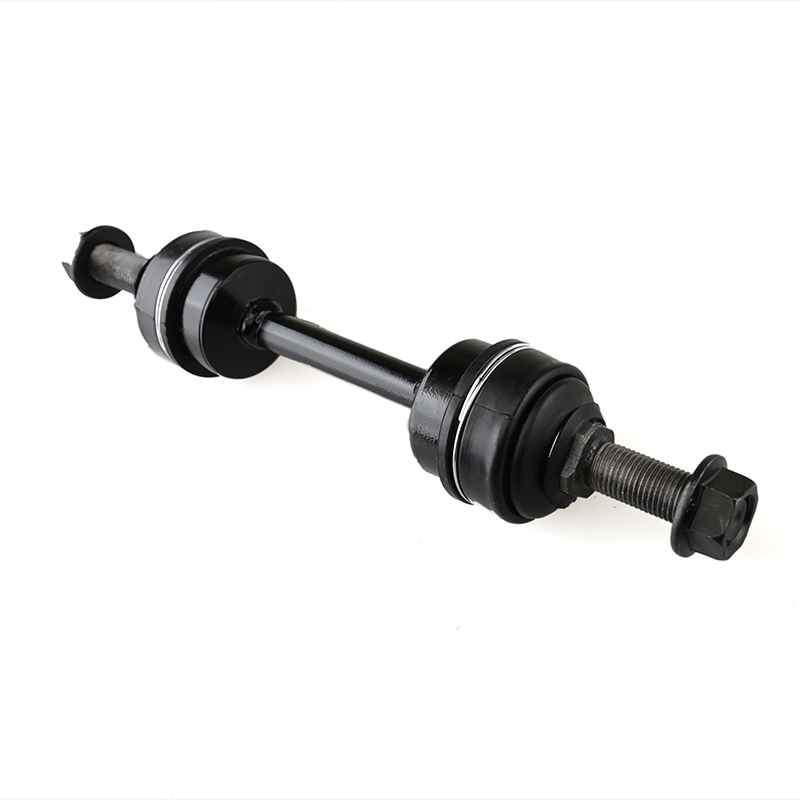

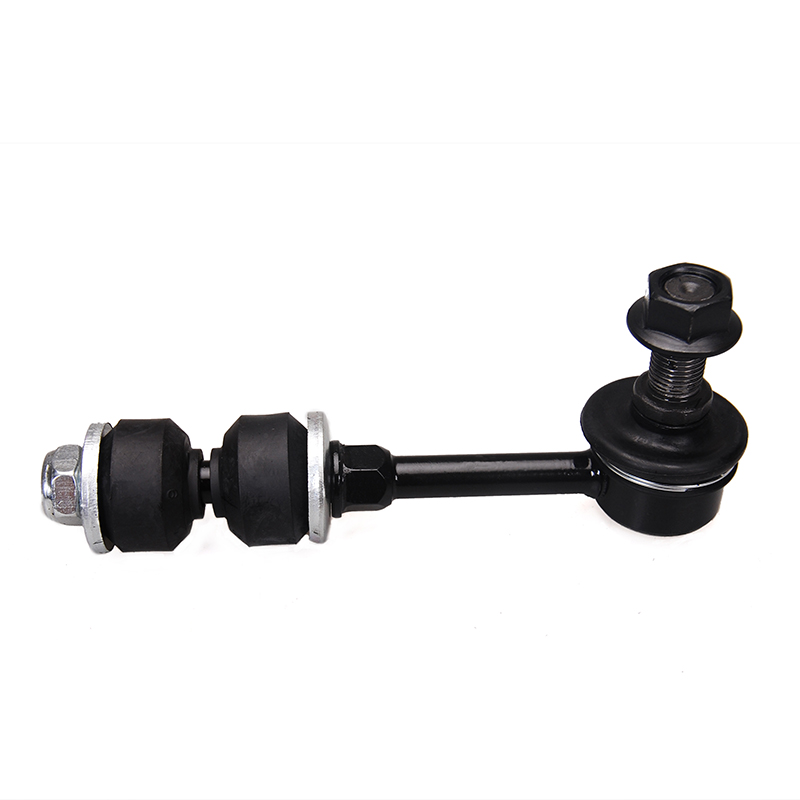

·stabilizer links

Benefits of reinforced steering linkage parts from G&W:

1.Ball Socket:It requires no any rust in salt spray test after 72 hours.

2.Sealing improvement:

√ Install upper and lower double lock rings to the rubber dust cover.

√ The color of lock rings can be customized in blue, red, green, etc.

3.Neoprene rubber boot:It can withstand the temperatures from -40 ℃ to 80 ℃,and continuously maintain crack free and as soft as before testing.

4.Ball Pin:

√ The spherical roughness of the ball pin is upgraded to 0.4μm instead of the common standard of 0.6 μ M (0.0006mm)

√ The tempering hardness can be HRC20-43.

5.Low temperature grease:It is lithium grease,which can withstand the temperature from -40 ℃ to 120 ℃,and no solidification or liquefaction after use.

6.Endurance performance:The ball pin won't become loose or fall off after no less than 600,000 cycles test.

7.Full set tests for our steering linkage parts,assuring our customers the stable quality and excellent performance:

√ Rubber boot test.

√ Grease Test.

√ Hardness inspection.

√ Ball Pin Inspection.

√ Push-out/Pull-out force test.

√ Dimension inspection.

√ Salt fog test.

√ Torque force Test.

√ Endurance Test.
